LS-M4600

LS-M4600

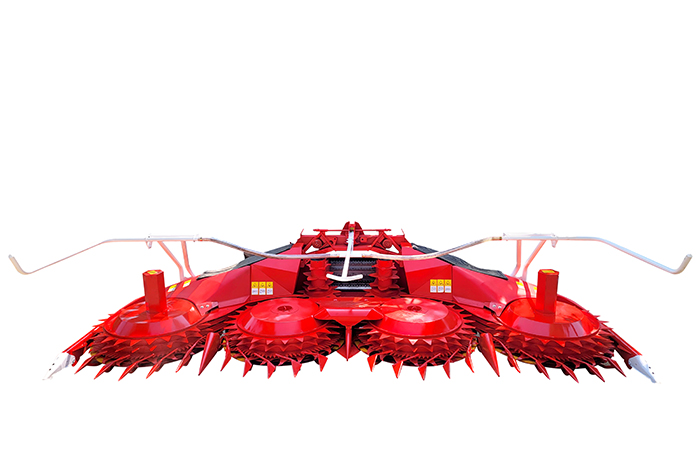

LS-M4600 harvesting table is a harvesting table suitable for large-scale silage harvesters. It has smooth cutting and feeding, sharp and durable blades, and excellent operating performance.

Product Details

The four discs of the header make harvesting tall corn smoother. They are foldable for easy travel on the road. The width after folding is no more than 3 meters. The transmission system is a power input transmission shaft + "water jacket" clutch, which effectively reduces the temperature of the clutch friction plate and avoids burning of the plate and transmission failure caused by high temperature.The header gearbox is made of aluminum alloy, which reduces the weight of the whole machine, improves heat dissipation and corrosion resistance. The unique suspension device allows both ends of the header to automatically float up and down with the terrain, thereby reducing the impact of uneven ground on the header.


Header parameters


projectunitDesign value
Specifications/LS-M4600
Working state dimensions ( length x width x height )mm3050x6060x1540
Folded size ( L x W x H )mm3050x3000x2160
Transport widthmm3000
Construction QualityKg3040
Minimum ground clearancemm≤ 100
Minimum cutting heightmm≤ 150



Core Subassembly
