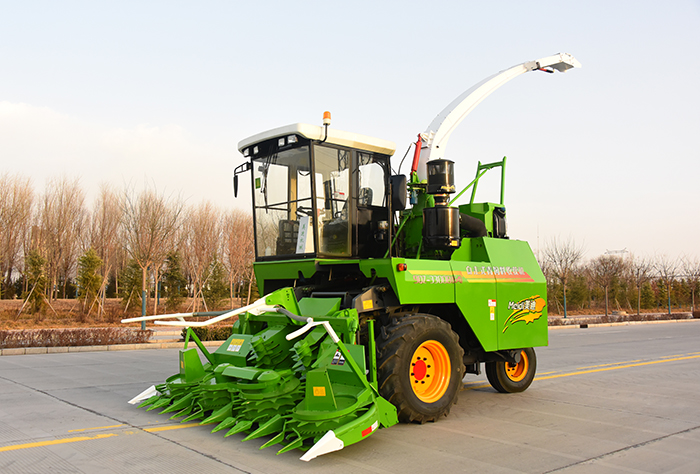

9QZ-3300B(G4) Self-Propelled Forage Harvester

9QZ-3300B(G4) Self-Propelled Forage Harvester

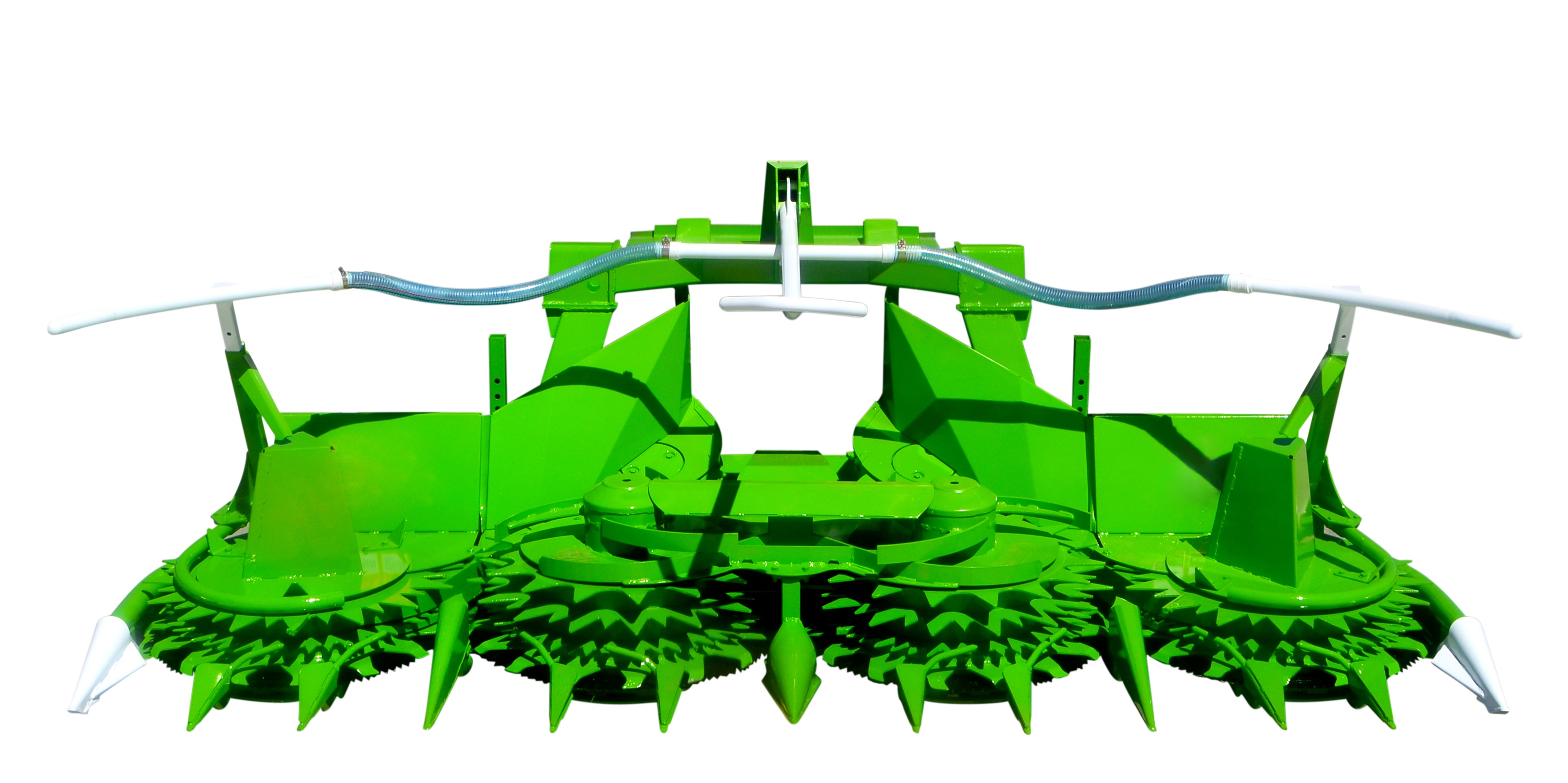

The header has a breadth of 3.3 meters and consists of four trays, and can make the stubble left low and uniform, and also harvest one more row of corn than

the traditional 9QZ-2900 model. Cutting and feeding are smooth. 24 chopping blades arranged in herringbone are sharp and durable, and the grain crusher

has a high degree of crushing for corn. The harvester is equipped with an automatic lubrication system to continuously lubricate bearings of key parts and

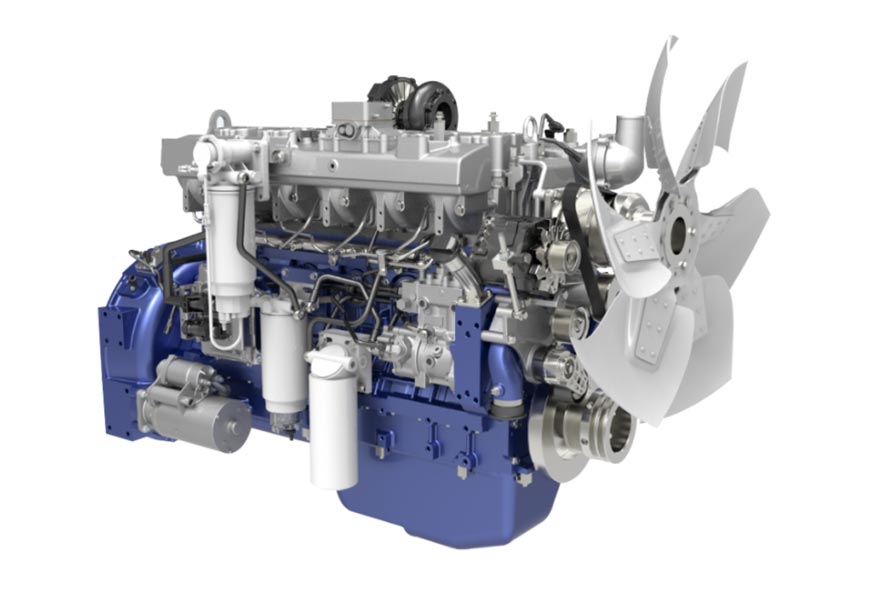

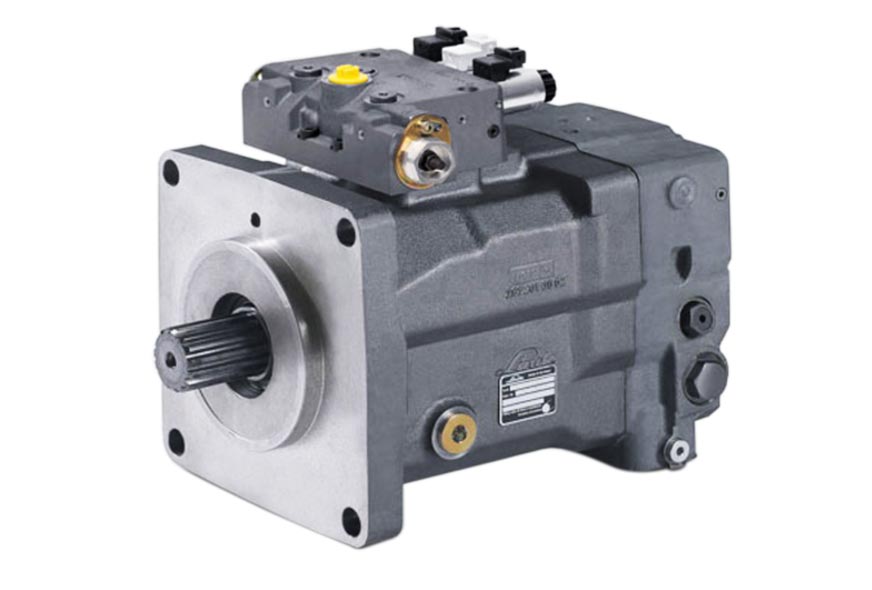

reduce maintenance time. The hydrostatic walking drive system of German brand makes driving easier and more flexible. The brand-name 360 HP engine

has strong power, high reliability, and satisfactory fuel economy which makes every liter of oil gain more harvest.


Product Details

Product Technical Parameters

1

Model Name

/

9QZ-3300B(G4) Self-propelled Green Forage Harvester

2

Type

/

Self-propelled

3

Working state dimensions (length x width x height)

mm

7650x3660x5430

4

Matching engine rated power

kW

265

5

Matching engine rated speed

r/min

2200

6

Header working width

mm

3331

7

Crop collecting header type

/

Straight cutting table

8

Header cutting type

/

Disk-type cutting knife

9

Feeding Mechanism Form

/

feed roller

10

number of feed mechanism

piece

8

11

Type of straw chopping mechanism

/

Roller type

12

Seed Grain crushing mechanism form

/

roller type

13

Harvest efficiency

kg/s

≥10

14

Transmission Mode

/

Manual speed shift

15

Drive mode

/

Hydraulic drive

16

Brake type

/

带式

17

Guide wheel tread

mm

1220

18

Drive wheel tread

mm

2280

19

Tire specification of guide wheel

/

10.00-16

20

Tire specification of drive wheel

/

17.5LR24

21

Wheel base

mm

2650

22

Operating speed

km/h

2-6

23

Theoretical chopping length

mm

Gear 1: Short 6; Long 8

Gear 2: Short 11; Long 14

Gear 3: Short 18; Long 22

24

Number of moving cutter

pieces

20




Core Subassembly
