9QZ-2900B(G4) Self-Propelled Forage Harvester

The header has a breadth of 2.91m, and the length of chopped plant feed can be adjusted, and the feed can be vomited when the

harvester is blocked. On the basis of 2900A Model, the main machine is added with grain crusher and secondary throwing blower,

which makes the plant feed more broken and when truck loading, more compact.


Product Details

Product Technical Parameters

1

Model Name

/

9QZ-2900B(G4) Self-propelled Green Forage Harvester

2

Type

/

Self-propelled

3

Working state dimensions (length x width x height)

mm

8940x3250x5430

4

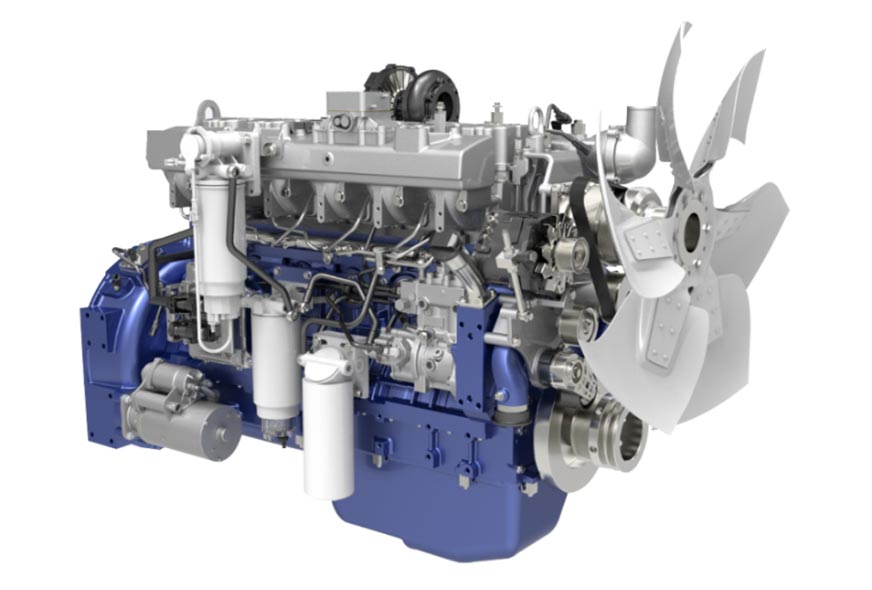

Matching engine rated power

kW

265

5

Matching engine rated speed

r/min

2200

6

Header working width

mm

2910

7

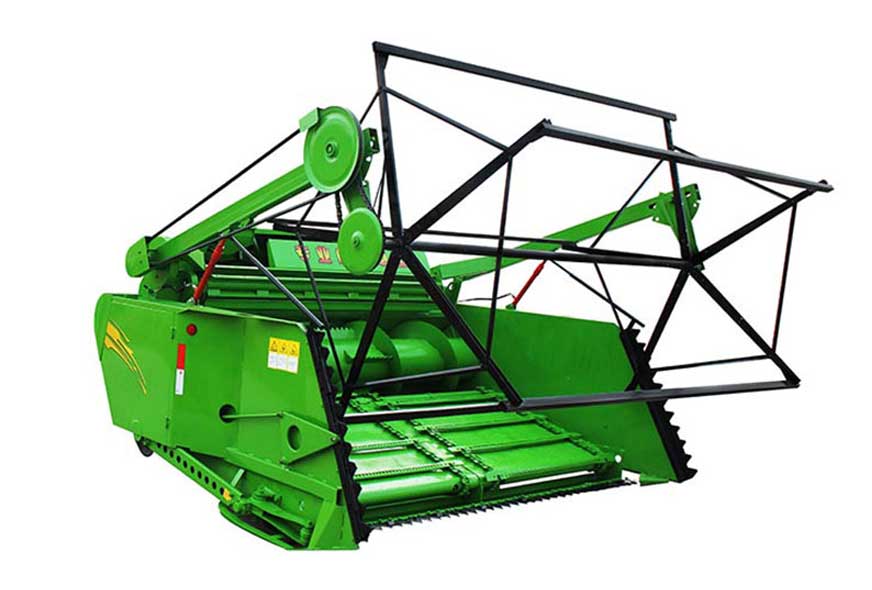

Crop collecting header type

/

Straight cutting table

8

Header cutting type

/

Reciprocating Working

9

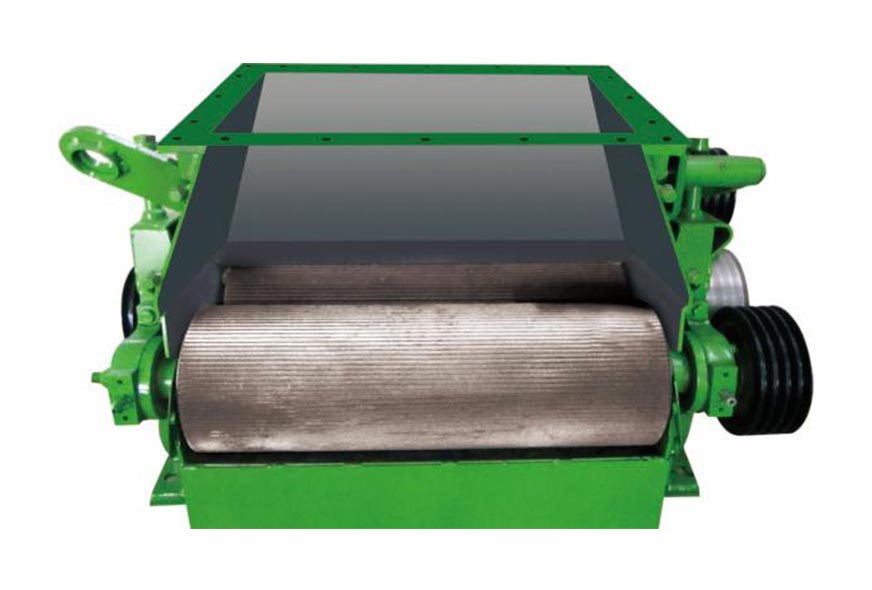

Feeding Mechanism Form

/

feed roller

10

number of feed mechanism

piece

8

11

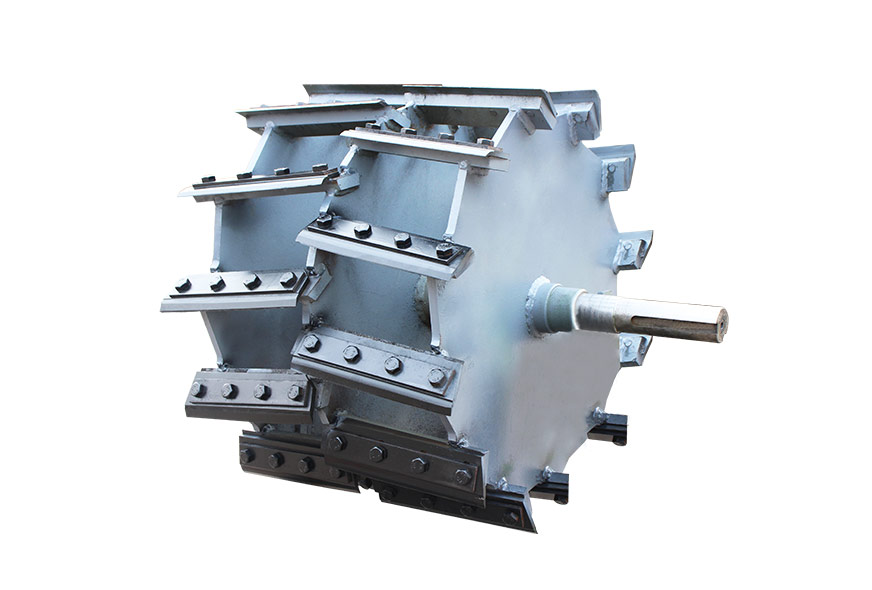

Type of straw chopping mechanism

/

Roller type

12

Seed Grain crushing mechanism form

/

roller type

13

Harvest efficiency

kg/s

≥10

14

Transmission Mode

/

Manual speed shift

15

Drive mode

/

Hydraulic drive

16

Brake type

/

带式

17

Guide wheel tread

mm

1220

18

Drive wheel tread

mm

2280

19

Tire specification of guide wheel

/

10.00-16

20

Tire specification of drive wheel

/

17.5LR24

21

Wheel base

mm

2650

22

Operating speed

km/h

2-6

23

Theoretical chopping length

mm

Gear 1: Short 6; Long 8

Gear 2: Short 11; Long 14

Gear 3: Short 18; Long 22

24

Number of moving cutter

pieces

24




Core Subassembly
