9QS-4500T

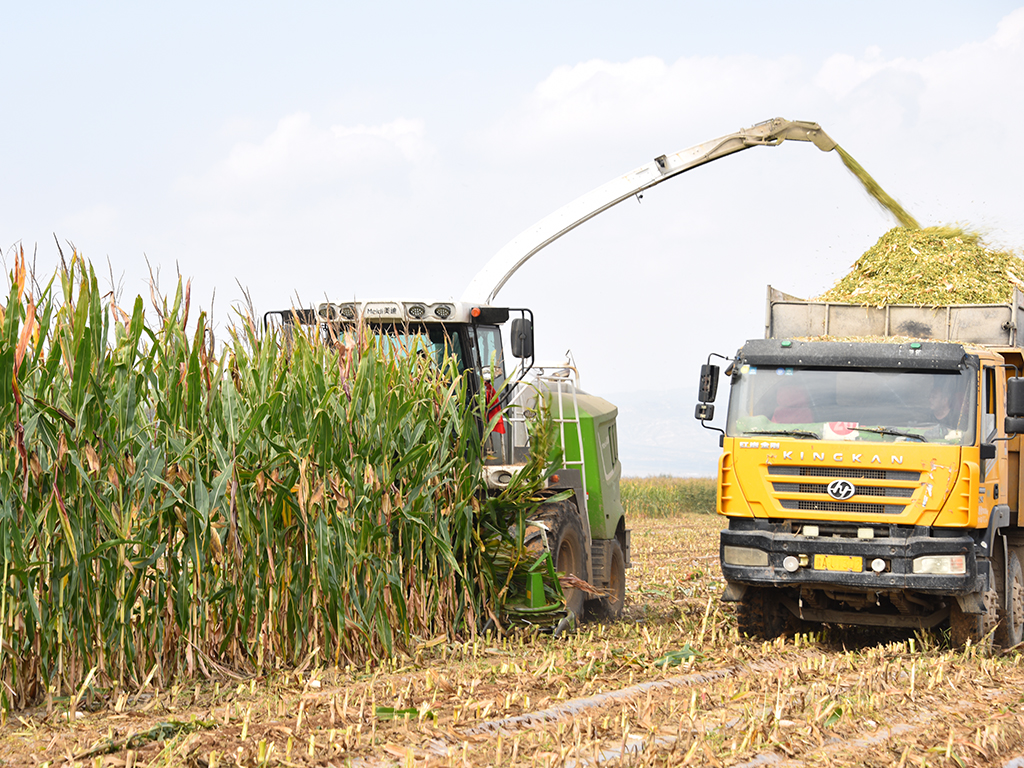

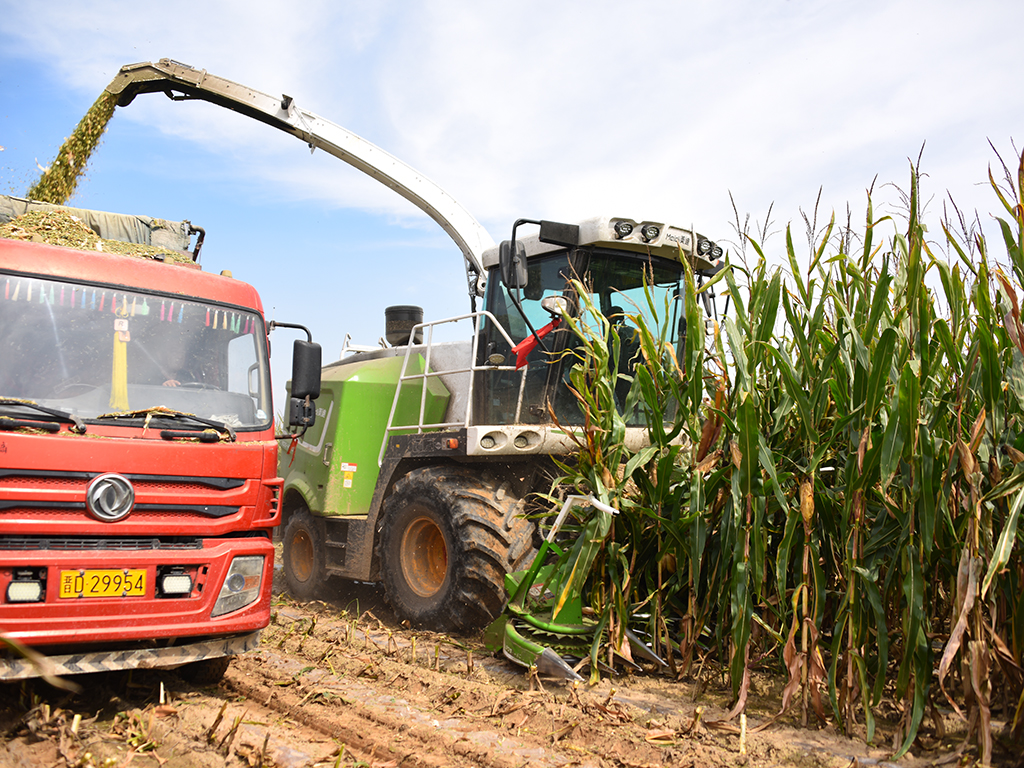

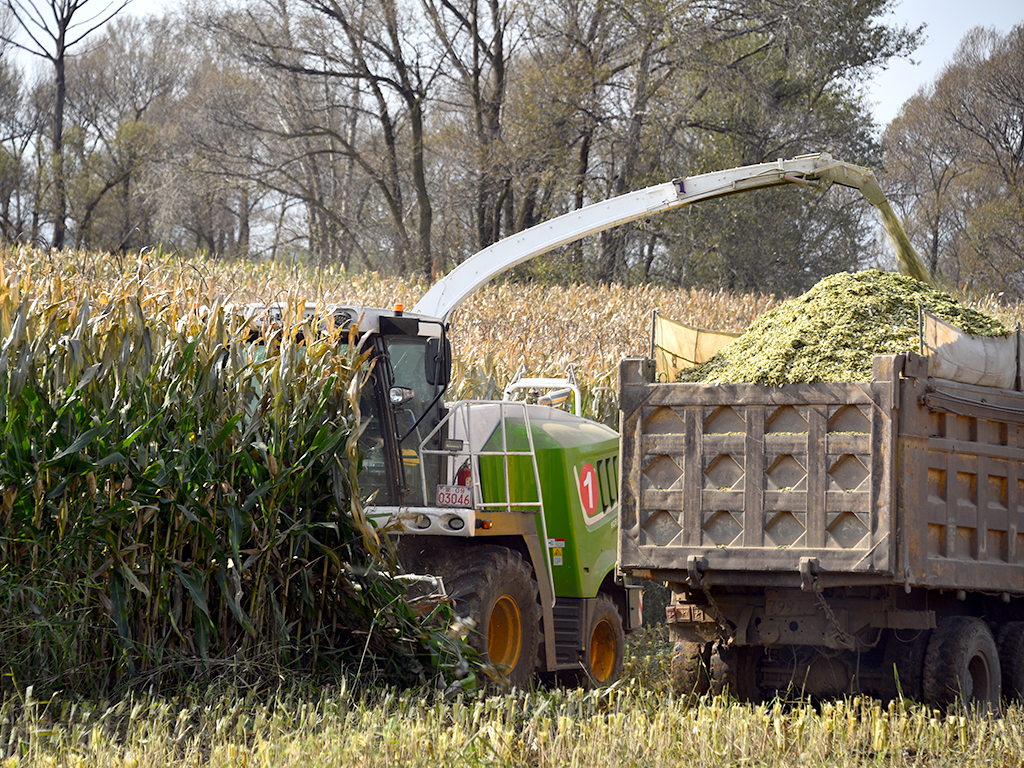

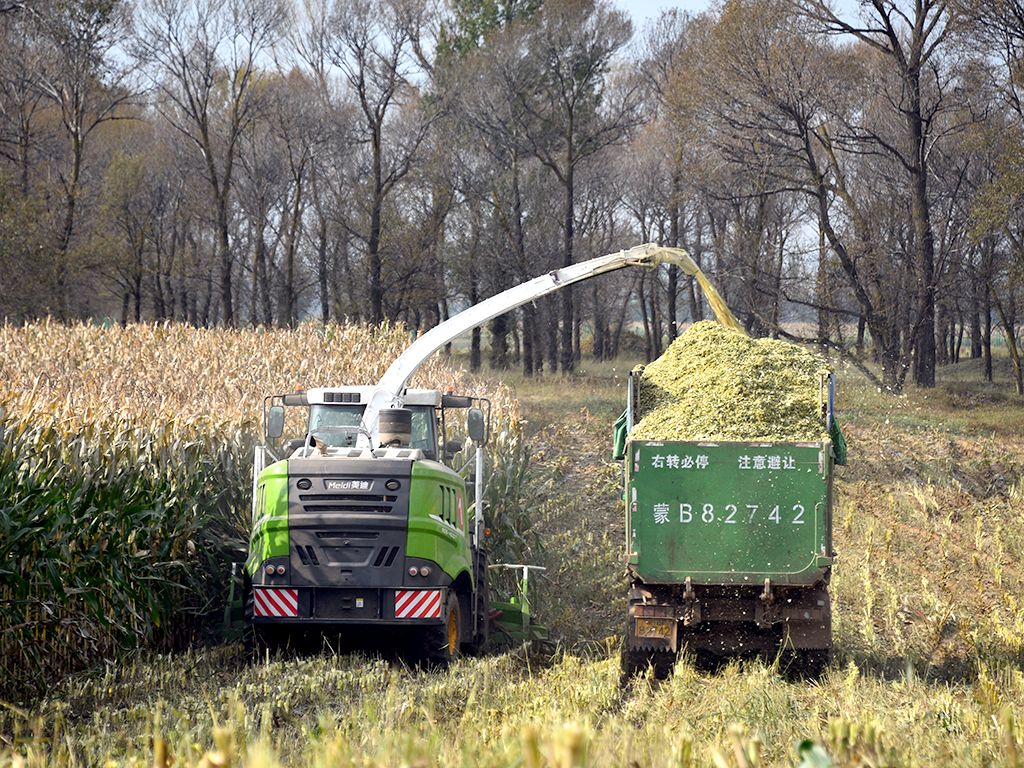

The Meidi 4500T self-propelled green fodder harvester is a newly designed high-end intelligent large-scale silage harvester with a brand-new mainframe layout, large internal space, and easier maintenance. It is equipped with a 4.5-meter-wide cutting table and a 480-horsepower engine, which greatly improves work efficiency (up to 100 tons/hour of silage corn harvesting). The new chopping reel and larger diameter kernel crusher make the corn cutting and kernel crushing effects comparable to those of imported machines. The spacious cab with air conditioning makes the working environment more comfortable. The multi-function armrest box and control handle can easily control the harvesting operation. The 2024 Meidi green fodder harvester is more trustworthy with its advanced and reliable technology and excellent harvesting quality.

Product Details

Product Technical Parameters
1Model Name/9QS-4500T Self-propelled Green Forage Harvester
2form/Self-propelled
3Working state dimensions (length x width x height)mm8160X4650X5870
4Matching engine rated powerkW353
5Matching engine rated speedr/min1900
6Cutting widthmm4450
7Crop collecting header type/Straight cutting table
8Header cutter type/Disc cutter
9Feeding mechanism type/Feeding roller
10Number of feeding mechanismsindivual4
11Straw chopping mechanism type/Drum type
12Grain crushing mechanism type/Roller type
13Speed Shift/Manual speed shift
14Drive mode/Hydraulic drive
15Brake type/Disc
16Steering wheel trackmm2110
17Guide wheel tire specifications/500/60-22.5
18Driving wheel trackmm2400
19Driving wheel tire specifications/750/65R26
20Wheelbasemm2710
21Designed cutting lengthmm1st gear: short 6; long 8
2nd gear: short 11; long 14
3rd gear: short 18; long 22



Core Subassembly
