9QS-3600

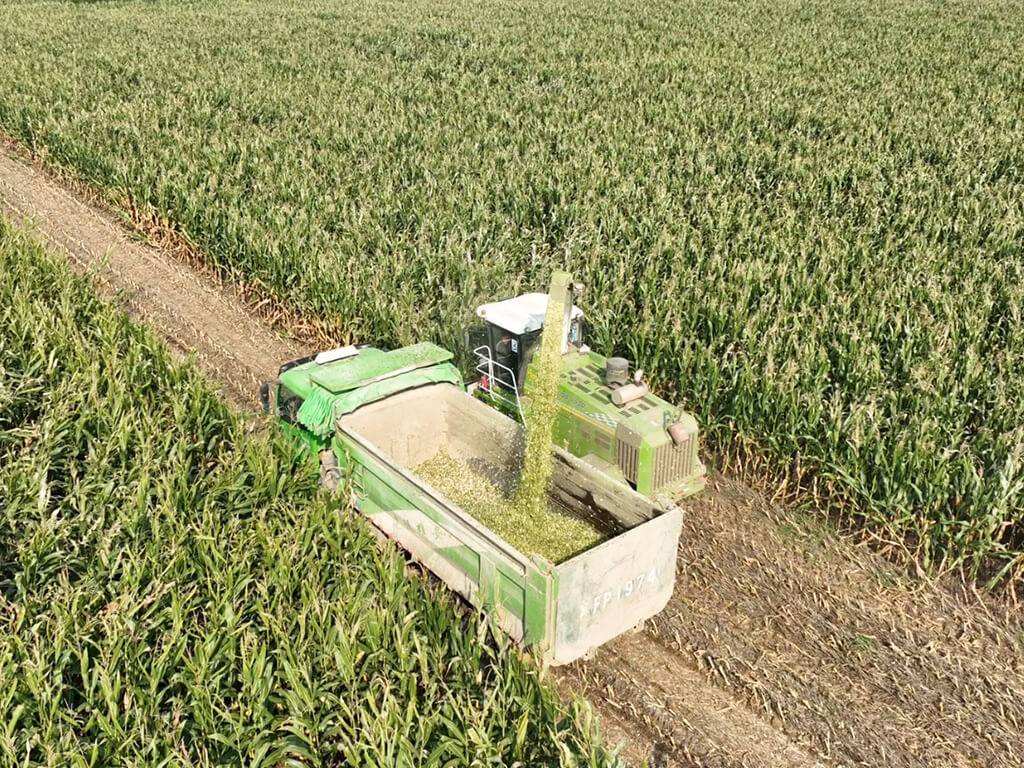

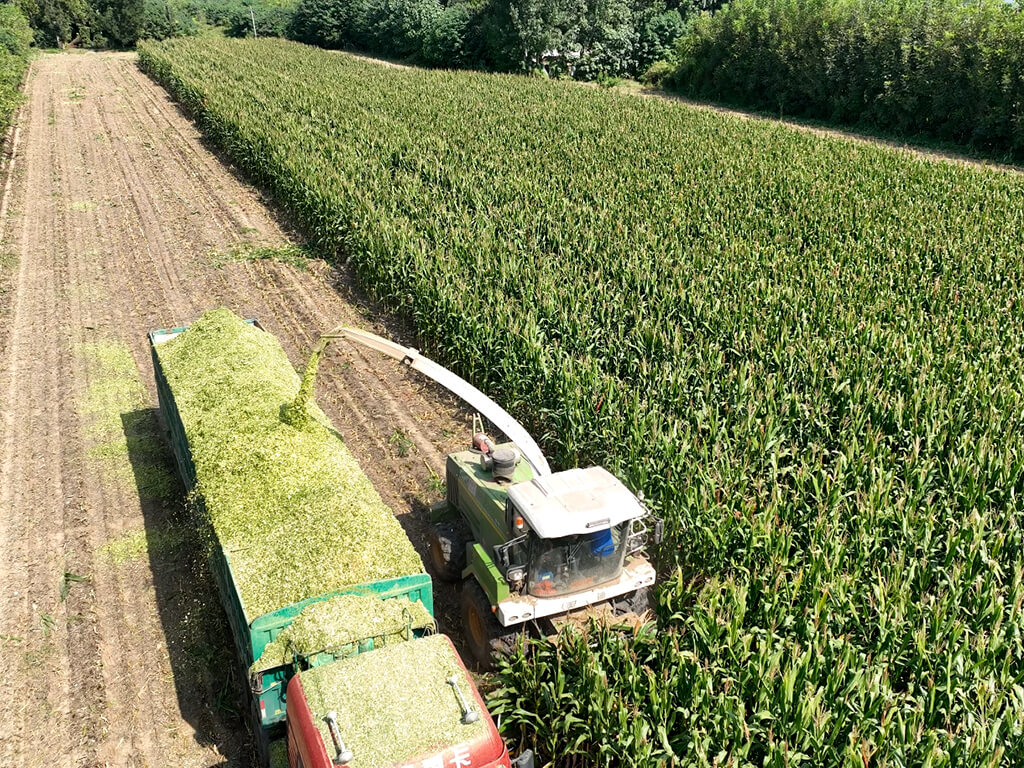

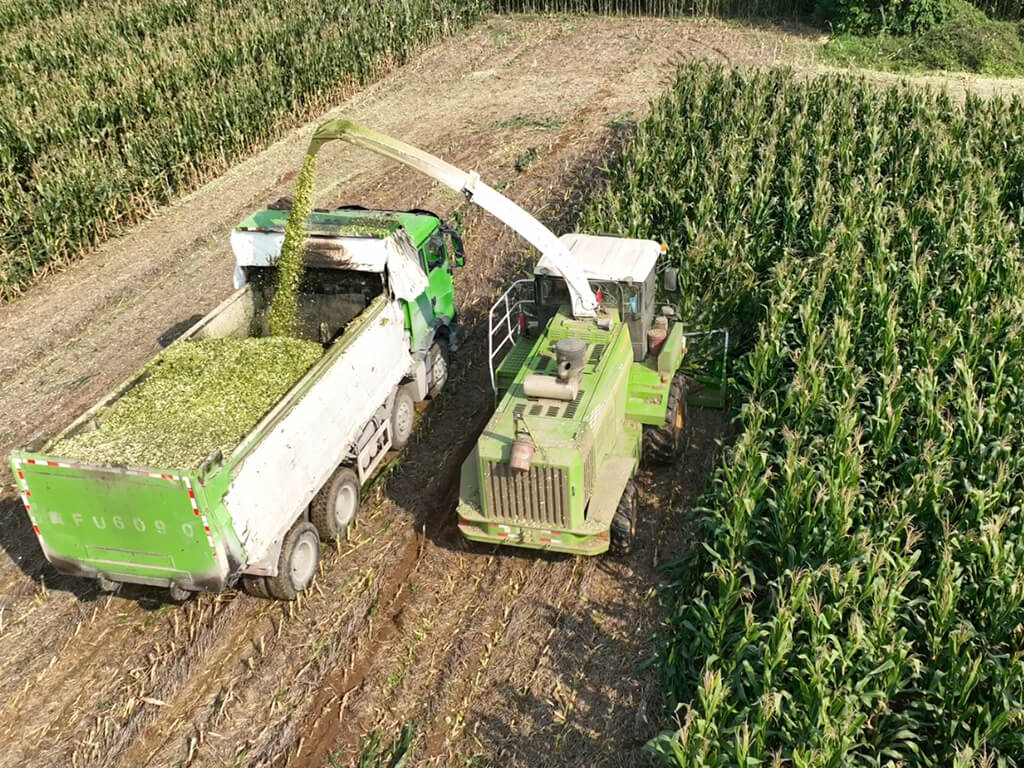

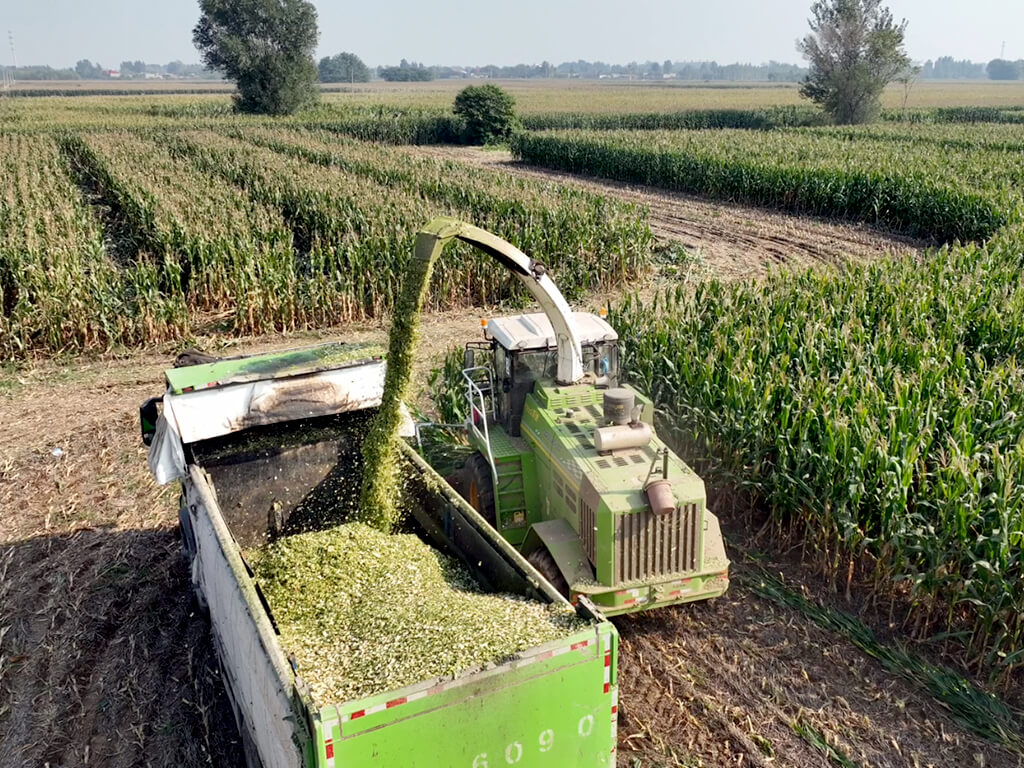

The Meidi 9QS-3600 green fodder harvester adopts a 3.6-meter foldable harvesting header, which consists of four tower plates. It can harvest in the same row, cut and transport smoothly, cut the bottom of the stubble and is not afraid of weeds. The width of the highway-driving header after folding is about 2.6 meters, which improves the passability of field paths. The widened feeding chamber increases the feeding volume and makes crop feeding smoother. The shredding mechanism adopts tungsten carbide sprayed blades, which are sharp and durable. The automatic sharpening is convenient and easy to use, ensuring that the blades remain sharp. The industry-leading guillotine cutting roller can meet the requirements of dairy farms for cutting segments. The enlarged grain crushing roller adopts a special heat treatment process, has a long service life, and the crushing effect can reach more than 95%. It adopts a famous brand 400 horsepower National IV engine, which is powerful and low in fuel consumption. The whole vehicle frame is sturdy and durable, not afraid of complex field conditions, and the walking adopts hydrostatic stepless speed change, which makes field operations smooth and flexible, eliminating the trouble of frequent gear shifting. The advanced radial tires increase stability and passability, and are anti-friction and durable. The cab is electronically controlled and equipped with a multi-function control handle and an embedded MCU controller, making operation more convenient and free, avoiding the trouble caused by misoperation and improving work efficiency and safety.

Product Details

Product Technical Parameters
Serial numberprojectunitDesign value
1Model Name/9QS-3600 Self-propelled Green Forage Harvester
2form/Self-propelled
3Working state dimensions (length x width x height)mm7700X3710X5550
4Matching engine rated powerkW294 (National Level 4)
5Matching engine rated speedr/min2100
6Cutting widthmm3520
7Crop collecting header type/Straight cutting table
8Header cutter type/Disc cutter
9Feeding mechanism type/Feeding roller
10Number of feeding mechanismsindivual4
11Straw chopping mechanism type/Drum type
12Grain crushing mechanism type/4
13Speed Shift/Manual speed shift
14Drive mode/Hydraulic drive
15Brake type/Disc
16Steering wheel trackmm2100
17Guide wheel tire specifications/500/60-22.5
18Driving wheel trackmm2330
19Driving wheel tire specifications/750/65R26
20Wheelbasemm2620
